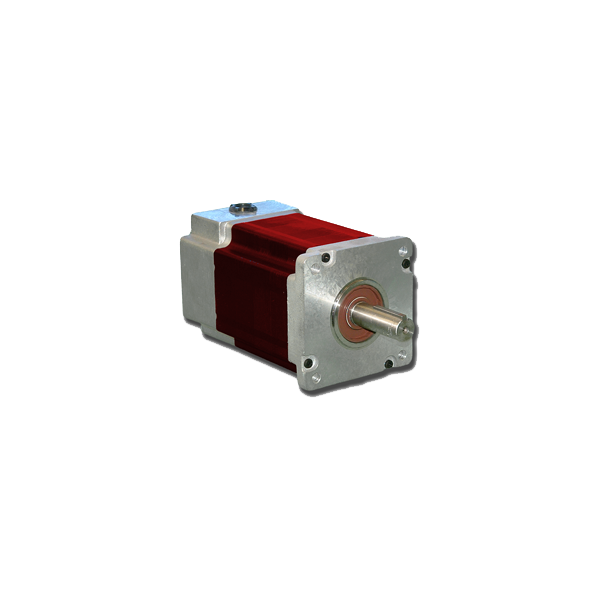

42K65322S-CB8

42K65 Series High Torque Stepper Motors use advanced magnetic technologies to provide significantly higher torque levels than what is available in standard (round) and other high-torque (square) stepper motors. They are also sealed around the shaft and conduit opening making them splashproof and perfect for applications requiring a IP65 rated stepper. The IP65 rating provides for splashdown, humid, and/or damp environments. These motors are available in a variety of windings to meet any application specific requirement. The torque levels reached with this step motor line are the highest in the 42 frame size and make them cost effective alternatives to servo motors in many applications. These motors can be specified in place of standard motors to reduce system size and cost, or increase system performance, without the need to go to larger sized motors or drivers.

See Accessories on this website for optional motor adders such as cables and connectors. For gearbox options, see GBPH Series gearboxes, and for compatible drivers, please consider our popular MBC10641, MBC12101, and MLA10641 drivers, or Driver Packs.

• NEMA 42 Frame Size
• Sealed per IP65 for Splashproof
• 1.8° Natural Step Angle
• Torque Ratings Up to 5700 oz.in.
• Substantial Increase In Torque Over Standard Motors
• High Acceleration and Increased Rotor Inertia
• 3 Stack Lengths
• 1.5% Typical Step Accuracy - Non Cumulative
• Rugged Construction
• Higher Temperature Characteristics
• CE Certified and RoHS Compliant
