42N65322S-CB8
| NEMA Size | 42 |
|---|---|
| Bipolar Torque (oz-in) | 4365 |
| Bipolar Series RMS Current (A) | 7.7 |
| Bipolar Series RMS Voltage (V) | 4.24 |
| Bipolar Series Inductance Per Phase (mH) | 13 |
| Bipolar Series Resistance Per Phase (ohm) | 0.55 |
| Rotor Inertia (oz-in-sec2) | 0.2293 |
| # of Lead Wires | 8 |
| Shaft | Single |
| Weight (lbs) | 25.7 |
| Length (in) | 9.2 |
Interested in large quantity discount?
Product Information

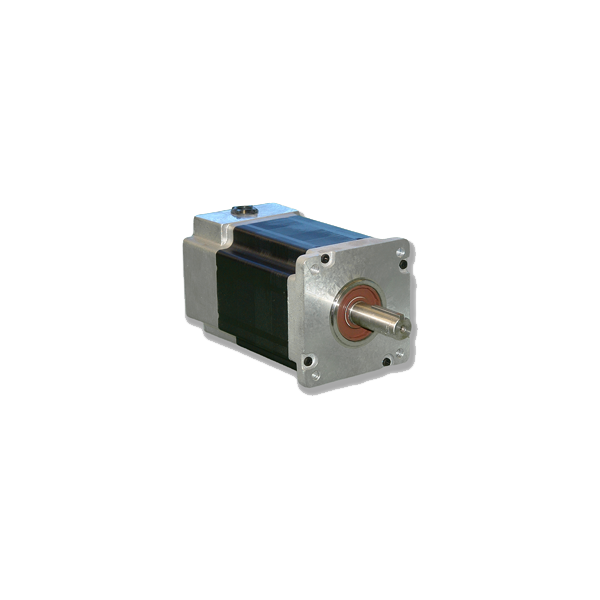

The 42N65 Series High Torque Stepper Motors use advanced magnetic technologies to provide significantly higher torque levels than what is available in standard round motors. They are also sealed around the shaft and conduit box making them splashproof and perfect for applications requiring IP65 rated stepper. These motors are available in a variety of windings to meet any application specific requirement. The torque levels reached with this step motor line make them cost effective alternatives to servo motors in many applications. These motors can be specified in place of standard motors to reduce system size and cost, or increase system performace.
See Accessories on this website for cable and connector adders. For gearbox options, see GBPH Series gearboxes. For compatible drivers, consider our popular MBC10641, MBC12101, and MLA10641 drivers, or Driver Packs.
- NEMA 42 Frame Size
- Sealed per IP65 for Splashproof
- 1.8° Natural Step Angle
- Holding Torque Ratings Up to 4365 oz.in.
- Substantial Increase In Torque Over Standard Motors
- High Acceleration and Increased Rotor Inertia
- 3 Stack Lengths
- 3.0% Typical Step Accuracy - Non Cumulative
- Rugged Construction
- Higher Temperature Characteristics
- CE Certified and RoHS Compliant
.png)
.png)
.png)
