The GBPN-040x Series is an In-Line Planetary Gearbox line that offers great prices without sacrificing precision and quality! The GBPN-040x Series is designed for motion control applications requiring moderate backlash and stiffness. This series will match most NEMA 17 (40mm) servo or stepping motors. Features include backlash as low as 24 arc-min, 22 gear ratios from 3 to 512 for rated torque up to 177 in-lbs (2,832 oz-in), (model dependent), a precision clamping system and lifetime lubrication. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Compatable with NEMA Size 17 Motors
  • Backlash as Low as 15 arc-min
  • Gear Ratios from 3:1 to 512:1
  • Long Design Life, Over 30,000 Hours
  • Up to 96 Percent Efficiency
  • Peak Input Speeds of Up to 18000 rpm
  • Rated Output Torque from 57 to 177 in-lb
Item Gear Ratio (X:1) Rated Output Torque (in-lbs) Max Output Torque (in-lbs) Backlash Maximum (arc-min) Maximum Input Speed (RPM) Stages Efficiency (%) Torsional Rigidity (Nm/arcmin) L2 Length (mm) Weight (lbs) 1pc Price (USD) Add to Cart
Sort by Name GBPN-0403-512 Gear Ratio (X:1) 512 Rated Output Torque (in-lbs) 66 Max Output Torque (in-lbs) 106 Backlash Maximum (arc-min) 22 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 1 L2 Length (mm) 64 Weight (lbs) 1.21 1pc Price (USD) $488.00
Sort by Name GBPN-0403-320 Gear Ratio (X:1) 320 Rated Output Torque (in-lbs) 159 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 22 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 1 L2 Length (mm) 64 Weight (lbs) 1.21 1pc Price (USD) $488.00
Sort by Name GBPN-0403-256 Gear Ratio (X:1) 256 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 22 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 1 L2 Length (mm) 64 Weight (lbs) 1.21 1pc Price (USD) $488.00
Sort by Name GBPN-0403-200 Gear Ratio (X:1) 200 Rated Output Torque (in-lbs) 159 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 22 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 1 L2 Length (mm) 64 Weight (lbs) 1.21 1pc Price (USD) $488.00
Sort by Name GBPN-0403-160 Gear Ratio (X:1) 160 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 22 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 1 L2 Length (mm) 64 Weight (lbs) 1.21 1pc Price (USD) $488.00
Sort by Name GBPN-0403-120 Gear Ratio (X:1) 120 Rated Output Torque (in-lbs) 159 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 22 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 1 L2 Length (mm) 64 Weight (lbs) 1.21 1pc Price (USD) $488.00
Sort by Name GBPN-0403-100 Gear Ratio (X:1) 100 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 22 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 1 L2 Length (mm) 64 Weight (lbs) 1.21 1pc Price (USD) $488.00
Sort by Name GBPN-0403-080 Gear Ratio (X:1) 80 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 22 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 1 L2 Length (mm) 64 Weight (lbs) 1.21 1pc Price (USD) $488.00
Sort by Name GBPN-0403-060 Gear Ratio (X:1) 60 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 22 Maximum Input Speed (RPM) 18000 Stages 3 Efficiency (%) 90 Torsional Rigidity (Nm/arcmin) 1 L2 Length (mm) 52 Weight (lbs) 1.21 1pc Price (USD) $488.00
Sort by Name GBPN-0402-064 Gear Ratio (X:1) 64 Rated Output Torque (in-lbs) 66 Max Output Torque (in-lbs) 106 Backlash Maximum (arc-min) 19 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 1.1 L2 Length (mm) 52 Weight (lbs) 0.99 1pc Price (USD) $438.00
Sort by Name GBPN-0402-040 Gear Ratio (X:1) 40 Rated Output Torque (in-lbs) 159 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 19 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 1.1 L2 Length (mm) 52 Weight (lbs) 0.99 1pc Price (USD) $438.00
Sort by Name GBPN-0402-032 Gear Ratio (X:1) 32 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 19 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 1.1 L2 Length (mm) 52 Weight (lbs) 0.99 1pc Price (USD) $438.00
Sort by Name GBPN-0402-025 Gear Ratio (X:1) 25 Rated Output Torque (in-lbs) 159 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 19 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 1.1 L2 Length (mm) 52 Weight (lbs) 0.99 1pc Price (USD) $438.00
Sort by Name GBPN-0402-020 Gear Ratio (X:1) 20 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 19 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 1.1 L2 Length (mm) 52 Weight (lbs) 0.99 1pc Price (USD) $438.00
Sort by Name GBPN-0402-016 Gear Ratio (X:1) 16 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 19 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 1.1 L2 Length (mm) 52 Weight (lbs) 0.99 1pc Price (USD) $438.00
Sort by Name GBPN-0402-015 Gear Ratio (X:1) 15 Rated Output Torque (in-lbs) 159 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 19 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 1.1 L2 Length (mm) 52 Weight (lbs) 0.99 1pc Price (USD) $438.00
Sort by Name GBPN-0402-012 Gear Ratio (X:1) 12 Rated Output Torque (in-lbs) 177 Max Output Torque (in-lbs) 283 Backlash Maximum (arc-min) 19 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 1.1 L2 Length (mm) 52 Weight (lbs) 0.99 1pc Price (USD) $438.00
Sort by Name GBPN-0402-009 Gear Ratio (X:1) 9 Rated Output Torque (in-lbs) 147 Max Output Torque (in-lbs) 230 Backlash Maximum (arc-min) 19 Maximum Input Speed (RPM) 18000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 1.1 L2 Length (mm) 52 Weight (lbs) 0.99 1pc Price (USD) $438.00
Sort by Name GBPN-0401-008 Gear Ratio (X:1) 8 Rated Output Torque (in-lbs) 53 Max Output Torque (in-lbs) 89 Backlash Maximum (arc-min) 15 Maximum Input Speed (RPM) 18000 Stages 1 Efficiency (%) 96 Torsional Rigidity (Nm/arcmin) 1 L2 Length (mm) 39 Weight (lbs) 0.77 1pc Price (USD) $389.00
Sort by Name GBPN-0401-005 Gear Ratio (X:1) 5 Rated Output Torque (in-lbs) 124 Max Output Torque (in-lbs) 195 Backlash Maximum (arc-min) 15 Maximum Input Speed (RPM) 18000 Stages 1 Efficiency (%) 96 Torsional Rigidity (Nm/arcmin) 1 L2 Length (mm) 39 Weight (lbs) 0.77 1pc Price (USD) $389.00
Sort by Name GBPN-0401-004 Gear Ratio (X:1) 4 Rated Output Torque (in-lbs) 133 Max Output Torque (in-lbs) 212 Backlash Maximum (arc-min) 15 Maximum Input Speed (RPM) 18000 Stages 1 Efficiency (%) 96 Torsional Rigidity (Nm/arcmin) 1 L2 Length (mm) 39 Weight (lbs) 0.77 1pc Price (USD) $389.00
Sort by Name GBPN-0401-003 Gear Ratio (X:1) 3 Rated Output Torque (in-lbs) 97 Max Output Torque (in-lbs) 155 Backlash Maximum (arc-min) 15 Maximum Input Speed (RPM) 18000 Stages 1 Efficiency (%) 96 Torsional Rigidity (Nm/arcmin) 1 L2 Length (mm) 39 Weight (lbs) 0.77 1pc Price (USD) $389.00
Loading...

Additional Information

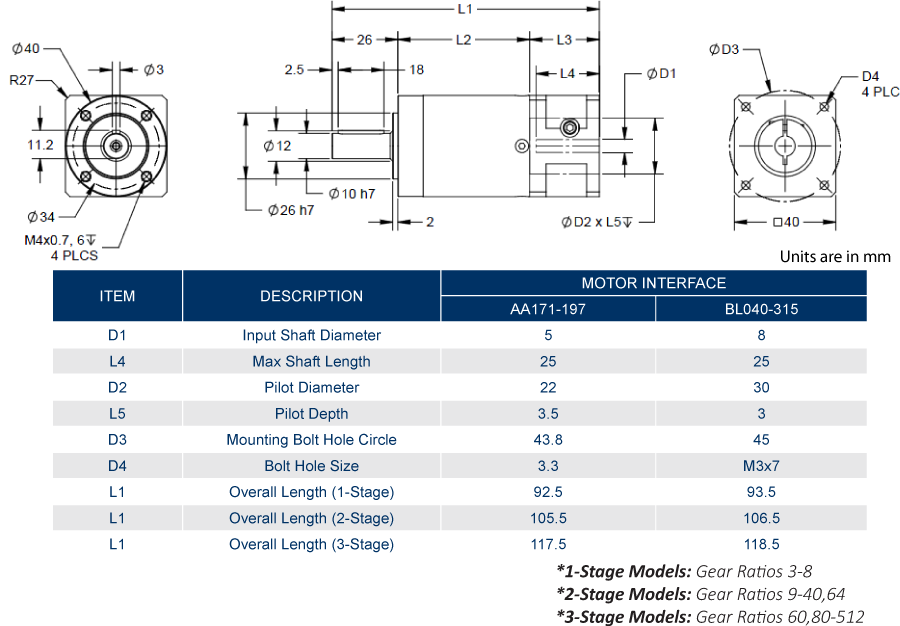

Motor Interface codes shown in this chart represent "suffixes" for complete gearbox part numbers. Choose a gearbox Item from the product table above, and you will be able to select the appropriate motor interface/suffix on the individual product page.

For custom input dimensions, or non-Anaheim Automation motors, fill out our  Gearbox Mounting Form  and submit it to our Sales Engineers at [email protected]
