TBI-TR25 Rails
TBI-TR25 Rails | Anaheim Automation, Inc.
Information
.png)
TBI-TR25 Rails are matched for TBI-TRx25 Blocks, and are offered in standard or custom lengths, with a continuous rail length up to 4000mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information.
- Rail Width: 23mm
- Use with: TBI-TRx25 Blocks
- Custom Rail Lengths Available
- Continuous Rail Lengths up to 4000mm

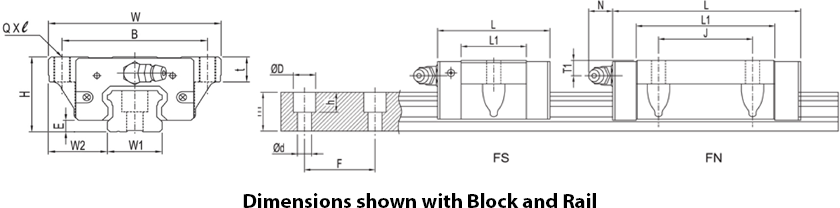

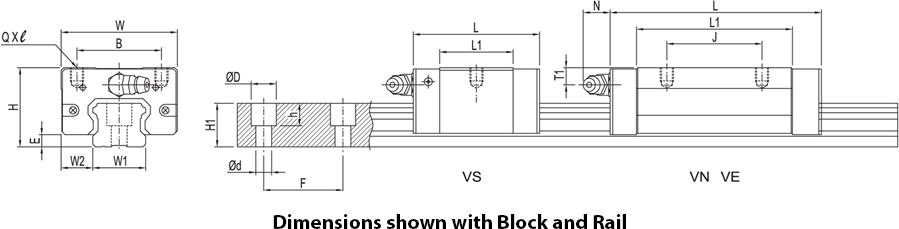

| Item | Rail Dimension (mm) | Rail Weight (lbs) | Lead Time | 1pc Price (USD) | Add to Cart | ||||
|---|---|---|---|---|---|---|---|---|---|
| W1 | H1 | F | d x D x h | Rail Length | |||||
| TBI-TR25N-4000L | 23 | 20 | 60 | 7 x 11 x 9 | 4000 | 27.96 | 80 in stock | $302.00 | Call Us Contact Us |
| TBI-TR25N-3900-30-30 | 23 | 20 | 60 | 7 x 11 x 9 | 3900 | 27.26 | Typ 1-3 Days | $340.00 | Call Us Contact Us |
| TBI-TR25N-3700-20-20 | 23 | 20 | 60 | 7 x 11 x 9 | 3700 | 25.86 | Typ 1-3 Days | $322.00 | Call Us Contact Us |
| TBI-TR25N-3500-10-10 | 23 | 20 | 60 | 7 x 11 x 9 | 3500 | 24.47 | Typ 1-3 Days | $308.00 | Call Us Contact Us |
| TBI-TR25N-3300-30-30 | 23 | 20 | 60 | 7 x 11 x 9 | 3300 | 23.07 | Typ 1-3 Days | $295.00 | Call Us Contact Us |
| TBI-TR25N-3100-20-20 | 23 | 20 | 60 | 7 x 11 x 9 | 3100 | 21.67 | Typ 1-3 Days | $277.00 | Call Us Contact Us |
| TBI-TR25N-2900-10-10 | 23 | 20 | 60 | 7 x 11 x 9 | 2900 | 20.27 | Typ 1-3 Days | $263.00 | Call Us Contact Us |
| TBI-TR25N-2700-30-30 | 23 | 20 | 60 | 7 x 11 x 9 | 2700 | 18.87 | Typ 1-3 Days | $249.00 | Call Us Contact Us |
| TBI-TR25N-2500-20-20 | 23 | 20 | 60 | 7 x 11 x 9 | 2500 | 17.48 | Typ 1-3 Days | $231.00 | Call Us Contact Us |
| TBI-TR25N-2300-10-10 | 23 | 20 | 60 | 7 x 11 x 9 | 2300 | 16.08 | Typ 1-3 Days | $218.00 | Call Us Contact Us |
| TBI-TR25N-2100-30-30 | 23 | 20 | 60 | 7 x 11 x 9 | 2100 | 14.68 | Typ 1-3 Days | $204.00 | Call Us Contact Us |
| TBI-TR25N-1900-20-20 | 23 | 20 | 60 | 7 x 11 x 9 | 1900 | 13.28 | Typ 1-3 Days | $186.00 | Call Us Contact Us |
| TBI-TR25N-1700-10-10 | 23 | 20 | 60 | 7 x 11 x 9 | 1700 | 11.89 | Typ 1-3 Days | $172.00 | Call Us Contact Us |
| TBI-TR25N-1500-30-30 | 23 | 20 | 60 | 7 x 11 x 9 | 1500 | 10.49 | Typ 1-3 Days | $159.00 | Call Us Contact Us |
| TBI-TR25N-1300-20-20 | 23 | 20 | 60 | 7 x 11 x 9 | 1300 | 9.09 | Typ 1-3 Days | $141.00 | Call Us Contact Us |
| TBI-TR25N-1100-10-10 | 23 | 20 | 60 | 7 x 11 x 9 | 1100 | 7.69 | Typ 1-3 Days | $127.00 | Call Us Contact Us |
| TBI-TR25N-0900-30-30 | 23 | 20 | 60 | 7 x 11 x 9 | 900 | 6.29 | Typ 1-3 Days | $114.00 | Call Us Contact Us |
| TBI-TR25N-0700-20-20 | 23 | 20 | 60 | 7 x 11 x 9 | 700 | 4.9 | Typ 1-3 Days | $95.00 | Call Us Contact Us |
| TBI-TR25N-0500-10-10 | 23 | 20 | 60 | 7 x 11 x 9 | 500 | 3.5 | Typ 1-3 Days | $82.00 | Call Us Contact Us |
| TBI-TR25N-0300-30-30 | 23 | 20 | 60 | 7 x 11 x 9 | 300 | 2.1 | Typ 1-3 Days | $68.00 | Call Us Contact Us |
| TBI-TR25N-0150-15-15 | 23 | 20 | 60 | 7 x 11 x 9 | 150 | 1.05 | Typ 1-3 Days | $55.00 | Call Us Contact Us |
*Rail lengths larger than 2400mm require additional shipping charges and are not available for purchase online. Please contact our sales department to place an order.
