TBI-TR15N-1100-10-10

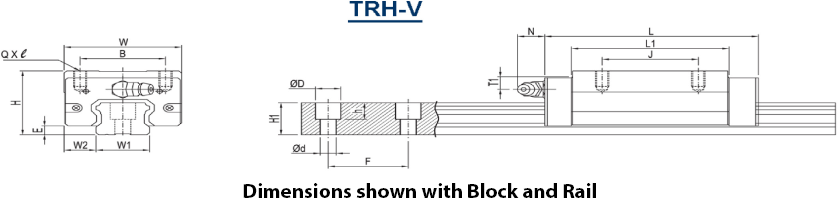

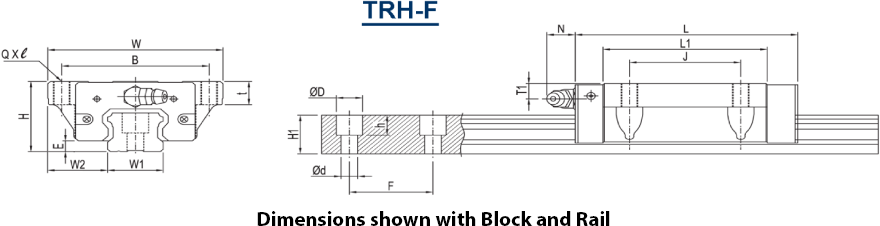

| W1 | 15 |
|---|---|
| H1 | 13 |
| F | 60 |
| d x D x h | 4.5 x 7.5 x 6 |
| Rail Length | 1100 |
| Rail Weight (lbs) | 3.2 |
| Lead Time | Typ 1-3 Days |
Interested in large quantity discount?
Product Information

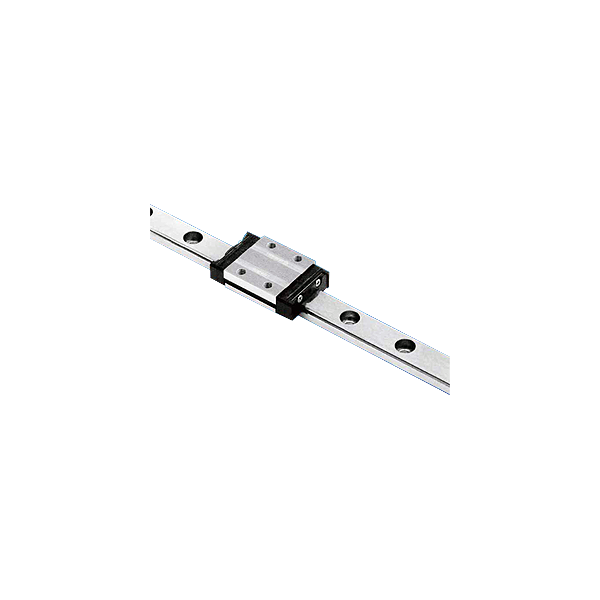

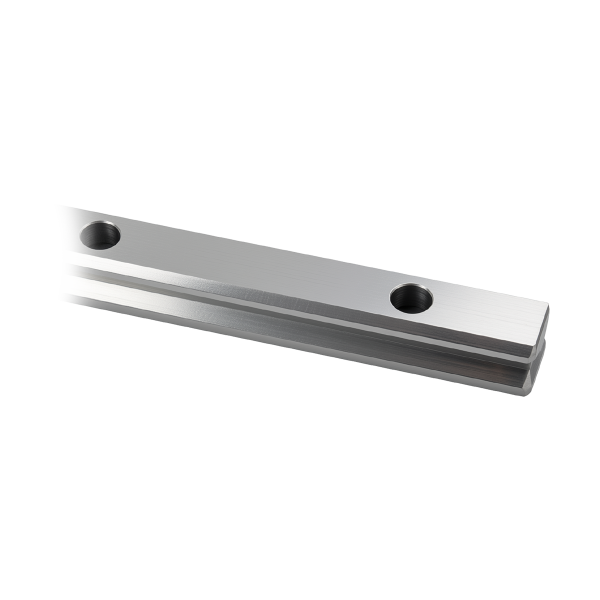

TBI-TR15 Series Rails are matched for TBI-TRx15 Blocks Series Linear Guide Bearing Blocks, and are offered in standard or custom lengths, with a continuous rail length up to 4000mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Typically, in stock in our Anaheim, CA warehouse. Please contact us for more information. Bearing Blocks sold separately.
- Size: 15mm Linear Guide Rail
- Rail Length: 1100mm
- Custom Rail Sizes Available
- Matched Bearing Blocks
