TBI-TR15N-1300-20-20

TBI-TR15N-1300-20-20

TBI-TR15N-1700-10-10

TBI-TR15N-1700-10-10

TBI-TR15N-1500-30-30

1pc Price:
$134.00
Quantity Discount
  • Buy 10 for $129.28 each and save 4%
  • Buy 25 for $125.53 each and save 6%
  • Buy 50 for $123.74 each and save 8%
  • Buy 100 for $122.00 each and save 9%
Inventory:
More Information
W1 15
H1 13
F 60
d x D x h 4.5 x 7.5 x 6
Rail Length 1500
Rail Weight (lbs) 4.3
Lead Time Typ 1-3 Days
Interested in large quantity discount?

Product Information

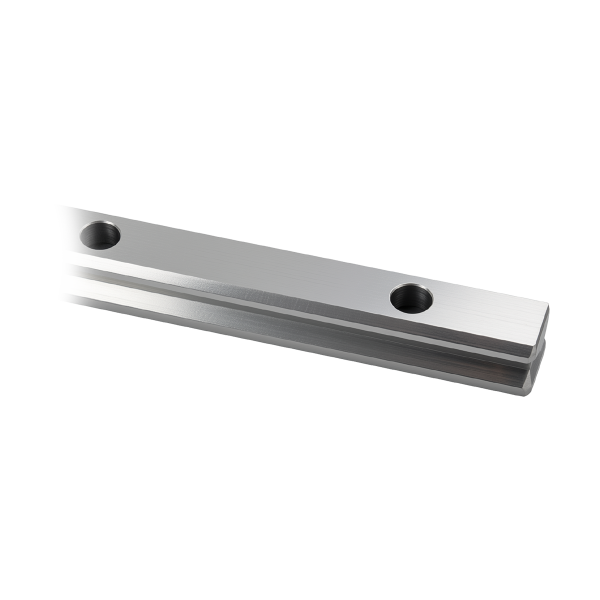

TBI-TR15 Series Rails are matched for TBI-TRx15 Blocks Series Linear Guide Bearing Blocks, and are offered in standard or custom lengths, with a continuous rail length up to 4000mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Typically, in stock in our Anaheim, CA warehouse. Please contact us for more information. Bearing Blocks sold separately.

  • Size: 15mm Linear Guide Rail
  • Rail Length: 1500mm
  • Custom Rail Sizes Available
  • Matched Bearing Blocks

Spec Sheet (PDF)
