TBI-TR15N-3500-10-10

TBI-TR15N-3500-10-10

TBI-TR15N-3900-30-30

TBI-TR15N-3900-30-30

TBI-TR15N-3700-20-20

1pc Price:
$281.00
Quantity Discount
  • Buy 10 for $271.92 each and save 3%
  • Buy 25 for $264.04 each and save 6%
  • Buy 50 for $260.27 each and save 7%
  • Buy 100 for $256.60 each and save 9%
Inventory:
More Information
W1 15
H1 13
F 60
d x D x h 4.5 x 7.5 x 6
Rail Length 3700
Rail Weight (lbs) 10.7
Lead Time Typ 1-3 Days
Interested in large quantity discount?

Product Information

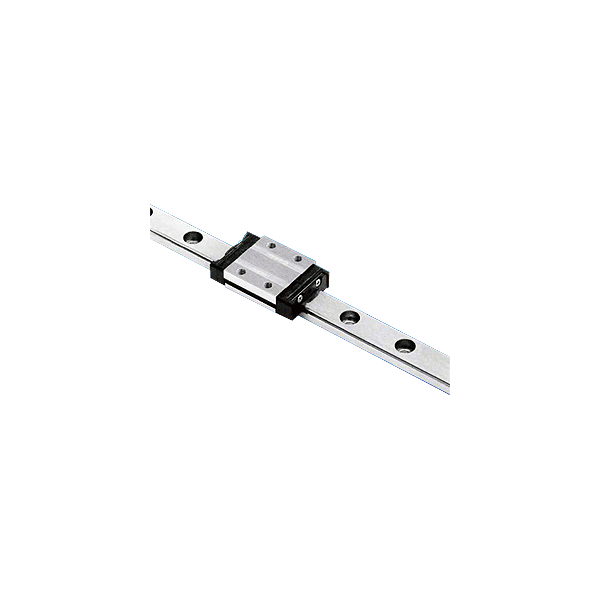

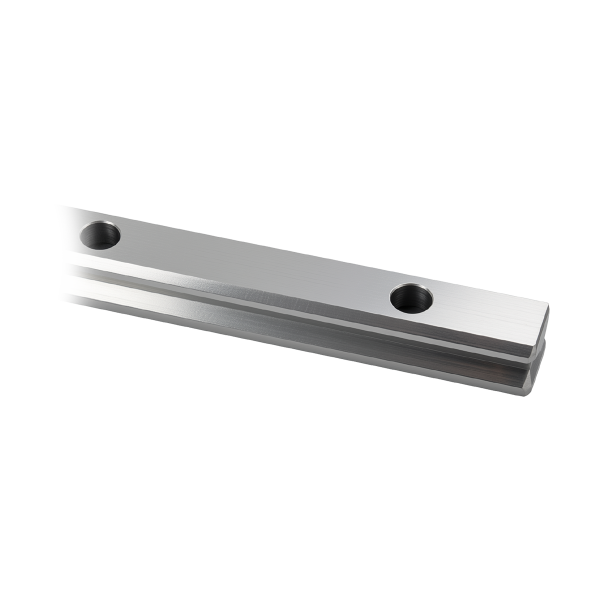

TBI-TR15 Series Rails are matched for TBI-TRx15 Blocks Series Linear Guide Bearing Blocks, and are offered in standard or custom lengths, with a continuous rail length up to 4000mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Typically, in stock in our Anaheim, CA warehouse. Please contact us for more information. Bearing Blocks sold separately.

***NOTE: TBI-TRH15FL-N-Z0 blocks are NFND (Not for New Designs).

  • Size: 15mm Linear Guide Rail
  • Rail Length: 3700mm
  • Custom Rail Sizes Available
  • Matched Bearing Blocks

Spec Sheet (PDF)
