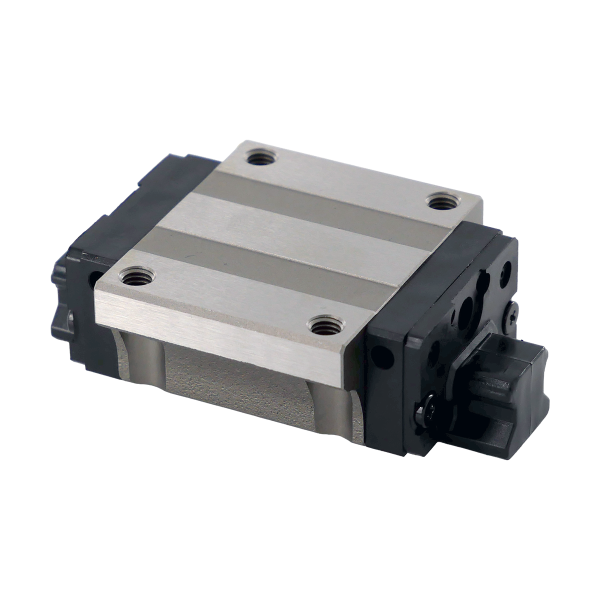

TBI-TRH15FN-N-Z0

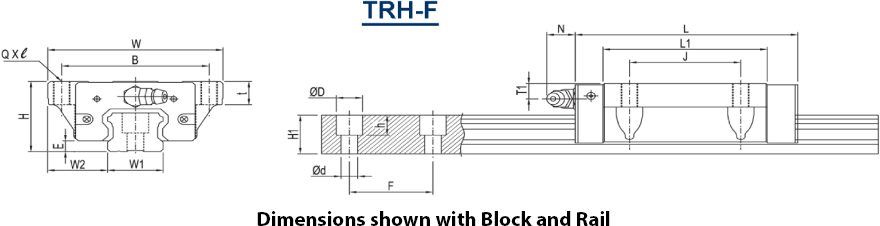

| H | 24 |
|---|---|
| W2 | 16 |
| E | 3.2 |
| W | 47 |
| B | 38 |
| J | 30 |
| L | 56.9 |
| L1 | 39.5 |
| QxL | M5X8 |
| N | 7 |
| T | 5.5 |
| C | 11.82 |
| C0 | 21.63 |
| Mx | 161.18 |
| My | 145.96 |
| Mz | 145.96 |
Interested in large quantity discount?
Product Information
TBI's high-quality linear guides deliver precision, durability, and affordability in one single package! Little friction resistance allows for high accuracy and speed, while several preload options are available for increased rigidity and performance. Rails are offered in standard or custom lengths, and are ideal for dynamic loads up to 11.8 kN (2,652 lbs) and static loads up to 21.6 kN (4,855 lbs). All standard blocks come with a bottom seal and double lip end seals. Please contact us for more information. Rails sold separately: TBI-TR15 Rails
- Size: Fits 15mm Linear Guide Rail (TBI-TR15 Rails Series)
- Dynamic Load: Up to 2,652 lbs (11.8 kN)
- Static Load: Up to 4,855 lbs (21.6 kN)
- End-Seal Options: Standard or Reinforced
- Pre-Load: Clearance, Standard, or Light
