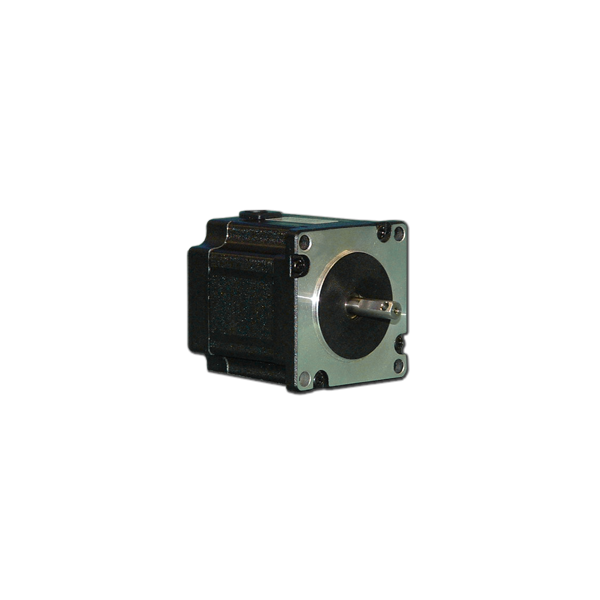

23L002S-LW8
| NEMA Size | 23 |
|---|---|
| Bipolar Torque (oz-in) | 78 |
| Bipolar Series RMS Current (A) | 0.7 |
| Bipolar Series RMS Voltage (V) | 7.07 |
| Bipolar Series Inductance Per Phase (mH) | 28 |
| Bipolar Series Resistance Per Phase (ohm) | 10 |
| Rotor Inertia (oz-in-sec2) | 0.0017 |
| # of Lead Wires | 8 |
| Shaft | Single |
| Weight (lbs) | 1.05 |
| Length (in) | 1.62 |
Interested in large quantity discount?
Product Information
The 23L Series High Torque Stepper Motors offer a great value without sacrificing quality. These motors are designed to offer the highest possible torque while minimizing vibration and audible noise. A broad line of motor windings and stack lengths are available off-the-shelf. The standard 8-lead motors can be connected in all possible configurations: series, unipolar, or parallel, to allow the maximum flexibility for your application. We can also customize the winding to perfectly match voltage, current, and maximum torque at operating speeds to meet your requirements.
See Accessories on this website for optional motor adders such as encoders, cables and connectors. For Gearbox adders, see Gearboxes. For compatible drivers, see MBC25081TB, MBC05641, MBC12101 and Driver Packs.
Note: 23L Series Stepper Motors have been discontinued and are LTSOH (Limited to Stock on Hand).
- NEMA 23 Frame Size
- 1.8° Step Angle
- Torque upto 320 oz-in
- High Step Accuracy and Resolution
- Low Vibration and Noise
- Can be Customized for
- Shaft Options
- Cables and Connectors
- RoHS Compliant
.png)
Note 1: Dual Shaft Option Only
.png)
.png)
.png)
