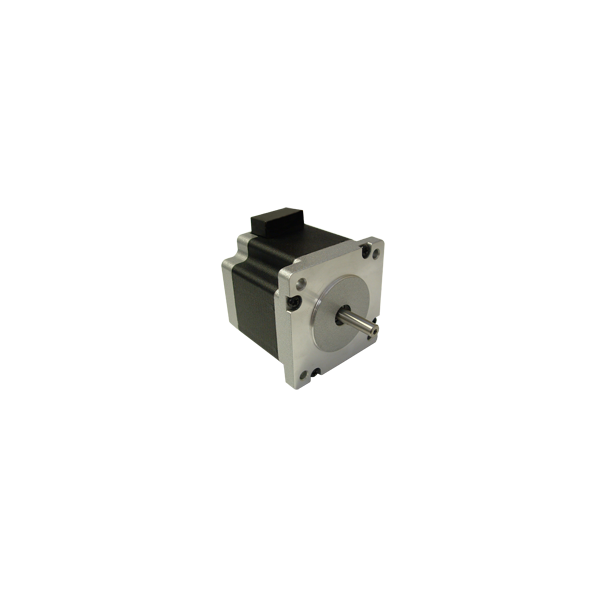

24Y506D-LW8

If you need more torque from a Nema 23 motor but can't move to a Nema 34, then the 24Y Series is your answer! They are bulkier than standard 23 Frame motors, but have the same mounting and shaft dimensions, as well as higher torque. A broad line of motor windings and stack lengths are available off-the-shelf. Motors can be customized to fit your machine requirements. The standard 8-lead motor can be connected in all possible configurations: series, unipolar, or parallel, to allow the maximum flexibility for your application. We can also customize the winding to perfectly match your voltage, current, and maximum torque at operating speeds.
See Accessories on this website for optional motor adders such as encoders, cables and connectors. For Gearbox options, see Gearboxes. See MBC25081TB, MBC05641, MBC12101 and Driver Packs for compatible drivers possibilities.

• NEMA 24 Frame Size (Same Mounting and Shaft Dimensions as NEMA 23 Size)
• 1.8° Step Angle
• IP50 Rated
• High Torque - Up to 475 oz-in Peak
• 30% - 50% More Torque than NEMA 23 Motors
• Shaft Flat as Standard
• Can be Customized for
• Winding Current
• Shaft Options
• Cables and Connectors
• CE Certified and RoHS Compliant

Note 1: Dual Shaft Option Only
