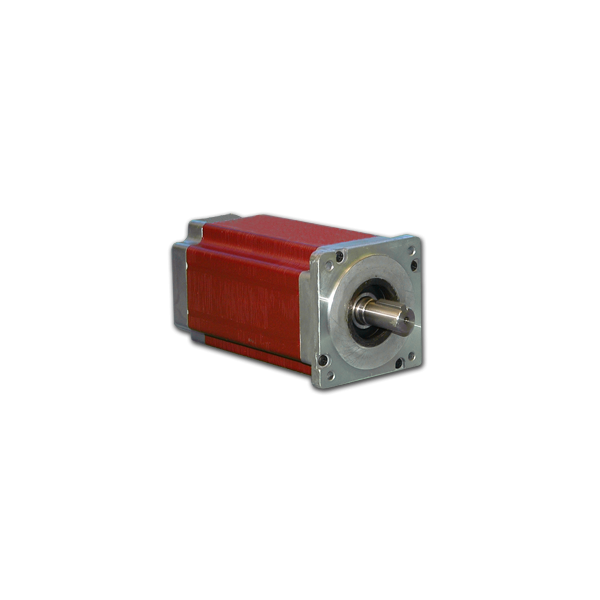

34K207S-LW8

These Super High Torque Stepper Motors use advanced magnetic technologies to provide significantly higher torque levels than what is available in our other stepper motors. These motors are available in a variety of windings to meet any application-specific requirement. The torque levels reached with this stepper motor line make them cost-effective alternatives to servo motors in many applications. These motors can be specified in place of standard motors to reduce system size and cost or increase system performance, without the need to go to larger-sized motors or drivers. Compatible with the Pacific Scientific K34 series.

See Accessories on this website for optional motor adders such as encoders, brakes, cables, and connectors. For Gearbox options, see Gearboxes. For compatible drivers, see the MBC05641, MBC12101, MBC10641, and MLA10641 Series, or Driver Packs.

• NEMA 34 Frame Size
• 1.8° Natural Step Angle
• Holding Torque Ratings Up to 2790 oz-in.
• Substantial Increase In Torque Over Standard and High Torque Motors
• High Acceleration and Increased Rotor Inertia
• 4 Stack Lengths
• 1.5% Typical Step Accuracy
• Rugged Construction
• Higher Temperature Characteristics
• CE Certified and RoHS Compliant

Note 1: Dual Shaft Option Only
