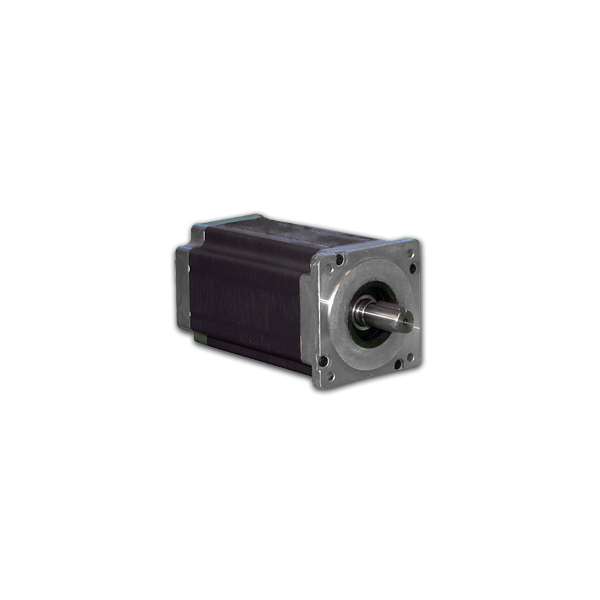

34N207D-LW8

The 34N Series High Torque Stepper Motors use advanced magnetic technologies to provide significantly higher torque levels than what is available in standard round-bodied step motors. These motors are available with a variety of windings to meet any application-specific requirement. The torque levels reached with this stepper motor line make them cost-effective alternatives to servo motors in many applications. These motors can be specified in place of standard motors to reduce system size and cost or increase system performace, without the need to go to larger-sized motors or drivers. Compatible with Pacific Scientific N34 series.

See Accessories on this website for optional motor adders such as encoders, brakes, cables and connectors. For Gearbox options, see Gearboxes. For compatible drivers, see MBC05641, MBC12101, MBC10641,  MLA10641, or Driver Packs.

Note: 34N104S-LW8 and 34N112S-LW8 Stepper Motors are LTSOH (limited to stock on hand).

• NEMA 34 Frame Size
• 1.8° Natural Step Angle
• Holding Torque Ratings Up to 2180 oz-in.
• Substantial Increase In Torque Over Standard Motors
• High Acceleration and Increased Rotor Inertia
• 4 Stack Lengths
• 3% Typical Step Accuracy - Non Cumulative
• Rugged Construction
• Higher Temperature Characteristics
• CE Certified and RoHS Compliant

Note 1: Dual Shaft Option Only
