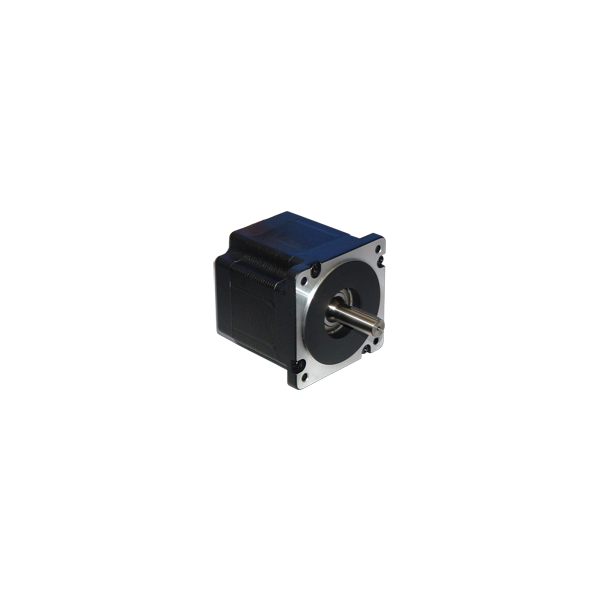

34Y314D-LW8-1000SI
| NEMA Size | 34 |
|---|---|
| Bipolar Torque (oz-in) | 1700 |
| Bipolar Series RMS Current (A) | 5 |
| Bipolar Series RMS Voltage (V) | 5.5 |
| Bipolar Series Inductance Per Phase (mH) | 14.2 |
| Bipolar Series Resistance Per Phase (ohm) | 1.12 |
| Rotor Inertia (oz-in-sec2) | 0.057 |
| # of Lead Wires | 8 |
| Shaft | Double |
| Weight (lbs) | 12.04 |
| Length (in) | 6.74 |
| "D" Shaft Diameter (in) | 0.625 |
| Included Accessory | ENC-A2I 1000 Line Encoder, Single-Ended, Index |
Interested in large quantity discount?
Product Information
The 34Y Series High Torque Step Motors offer a great value without sacrificing quality. These motors are designed to offer the highest possible torque while minimizing vibration and audible noise. A broad line of motor windings and stack lengths are available off-the-shelf, and motors can be customized to fit your machine requirements. The standard 8-lead motors can be connected in all possible configurations: series, unipolar, or parallel, to allow the maximum flexibility for your application. We can also customize the winding to perfectly match your voltage, current, and maximum torque at operating speeds.
See Accessories on this website for motor adders such as encoders, cables and connectors. For Gearbox adders, see Gearboxes. For compatible drivers, see MBC05641, MBC12101, MBC10641, and MLA10641 Series, or Driver packs.
- NEMA 34 Frame Size
- 1.8° Step Angle
- IP50 Rated
- High Torque - Up to 1700 oz-in
- High Step Accuracy and Resolution
- Keyed Shaft Standard
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
Note 1: Dual Shaft Option Only
.png)
.png)
.png)
.png)
.png)
.png)
