GBPS-180x

GBPS-180x | Anaheim Automation, Inc.

Information

The GBPS-180x Series is an In-Line Planetary Helical Gearbox line that offers great prices without sacrificing precision and quality. The GBPS-180x Series is designed for motion control applications requiring moderate backlash and stiffness. Features include backlash as low as 1 arcminute, 22 gear ratios for rated torque up to 9294 in-lbs (148,704oz-in), (model dependent), a precision clamping system and lifetime lubrication. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

See our GBPS Gearbox Installation Guide

  • Backlash as Low as 1 arc-min
  • Gear Ratios from 3:1 to 100:1
  • Long Design Life, Over 20,000 hrs
  • Up to 97 Percent Efficiency
  • Max Input Speeds Up to 6,000 RPM
  • Operating Temperature of -10° to +90° C
  • Rated Output Torque 7081 to 9294 in-lb
Item Gear Ratio (X:1) Rated Output Torque (in-lbs) Max Output Torque (in-lbs) Backlash Maximum (arc-min) Maximum Input Speed (RPM) Stages Efficiency (%) Torsional Rigidity (Nm/arcmin) L2 Length (mm) Weight (lbs) 1pc Price (USD) Add to Cart
Sort by Name GBPS-1802-NM-100 Gear Ratio (X:1) 100 Rated Output Torque (in-lbs) 7081 Max Output Torque (in-lbs) 12746 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1802-NM-090 Gear Ratio (X:1) 90 Rated Output Torque (in-lbs) 7081 Max Output Torque (in-lbs) 12746 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1802-NM-080 Gear Ratio (X:1) 80 Rated Output Torque (in-lbs) 7966 Max Output Torque (in-lbs) 14339 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1802-NM-070 Gear Ratio (X:1) 70 Rated Output Torque (in-lbs) 8497 Max Output Torque (in-lbs) 15295 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1802-NM-060 Gear Ratio (X:1) 60 Rated Output Torque (in-lbs) 8851 Max Output Torque (in-lbs) 15932 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1802-NM-050 Gear Ratio (X:1) 50 Rated Output Torque (in-lbs) 9294 Max Output Torque (in-lbs) 16729 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1802-NM-045 Gear Ratio (X:1) 45 Rated Output Torque (in-lbs) 9294 Max Output Torque (in-lbs) 16729 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1802-NM-040 Gear Ratio (X:1) 40 Rated Output Torque (in-lbs) 9294 Max Output Torque (in-lbs) 16729 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1802-NM-035 Gear Ratio (X:1) 35 Rated Output Torque (in-lbs) 9294 Max Output Torque (in-lbs) 16729 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1802-NM-030 Gear Ratio (X:1) 30 Rated Output Torque (in-lbs) 9294 Max Output Torque (in-lbs) 16729 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1802-NM-025 Gear Ratio (X:1) 25 Rated Output Torque (in-lbs) 9294 Max Output Torque (in-lbs) 16729 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1802-NM-020 Gear Ratio (X:1) 20 Rated Output Torque (in-lbs) 8408 Max Output Torque (in-lbs) 15134 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1802-NM-015 Gear Ratio (X:1) 15 Rated Output Torque (in-lbs) 7523 Max Output Torque (in-lbs) 13541 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1802-NM-012 Gear Ratio (X:1) 12 Rated Output Torque (in-lbs) 7523 Max Output Torque (in-lbs) 13541 Backlash Maximum (arc-min) 3 Maximum Input Speed (RPM) 6000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 166 Weight (lbs) 75.00 1pc Price (USD) $3,916.00 Call Us Contact Us
Sort by Name GBPS-1801-NM-010 Gear Ratio (X:1) 10 Rated Output Torque (in-lbs) 7081 Max Output Torque (in-lbs) 12746 Backlash Maximum (arc-min) 1 Maximum Input Speed (RPM) 6000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 94 Weight (lbs) 60.00 1pc Price (USD) $3,210.00 Call Us Contact Us
Sort by Name GBPS-1801-NM-009 Gear Ratio (X:1) 9 Rated Output Torque (in-lbs) 7081 Max Output Torque (in-lbs) 12746 Backlash Maximum (arc-min) 1 Maximum Input Speed (RPM) 6000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 94 Weight (lbs) 60.00 1pc Price (USD) $3,210.00 Call Us Contact Us
Sort by Name GBPS-1801-NM-008 Gear Ratio (X:1) 8 Rated Output Torque (in-lbs) 7966 Max Output Torque (in-lbs) 14339 Backlash Maximum (arc-min) 1 Maximum Input Speed (RPM) 6000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 94 Weight (lbs) 60.00 1pc Price (USD) $3,210.00 Call Us Contact Us
Sort by Name GBPS-1801-NM-007 Gear Ratio (X:1) 7 Rated Output Torque (in-lbs) 8497 Max Output Torque (in-lbs) 15295 Backlash Maximum (arc-min) 1 Maximum Input Speed (RPM) 6000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 94 Weight (lbs) 60.00 1pc Price (USD) $3,210.00 Call Us Contact Us
Sort by Name GBPS-1801-NM-006 Gear Ratio (X:1) 6 Rated Output Torque (in-lbs) 8851 Max Output Torque (in-lbs) 15932 Backlash Maximum (arc-min) 1 Maximum Input Speed (RPM) 6000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 94 Weight (lbs) 60.00 1pc Price (USD) $3,210.00 Call Us Contact Us
Sort by Name GBPS-1801-NM-005 Gear Ratio (X:1) 5 Rated Output Torque (in-lbs) 9294 Max Output Torque (in-lbs) 16729 Backlash Maximum (arc-min) 1 Maximum Input Speed (RPM) 6000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 94 Weight (lbs) 60.00 1pc Price (USD) $3,210.00 Call Us Contact Us
Sort by Name GBPS-1801-NM-004 Gear Ratio (X:1) 4 Rated Output Torque (in-lbs) 8851 Max Output Torque (in-lbs) 15932 Backlash Maximum (arc-min) 1 Maximum Input Speed (RPM) 6000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 94 Weight (lbs) 60.00 1pc Price (USD) $3,210.00 Call Us Contact Us
Sort by Name GBPS-1801-NM-003 Gear Ratio (X:1) 3 Rated Output Torque (in-lbs) 8408 Max Output Torque (in-lbs) 15134 Backlash Maximum (arc-min) 1 Maximum Input Speed (RPM) 6000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 75 L2 Length (mm) 94 Weight (lbs) 60.00 1pc Price (USD) $3,210.00 Call Us Contact Us
Loading...

Additional Information

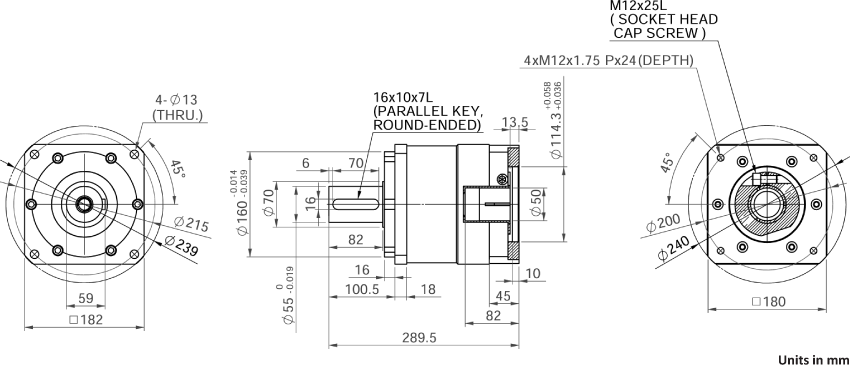

GBPS-1801-NM
