TBI-TR30 Rails
TBI-TR30 Rails | Anaheim Automation, Inc.
Information
.png)

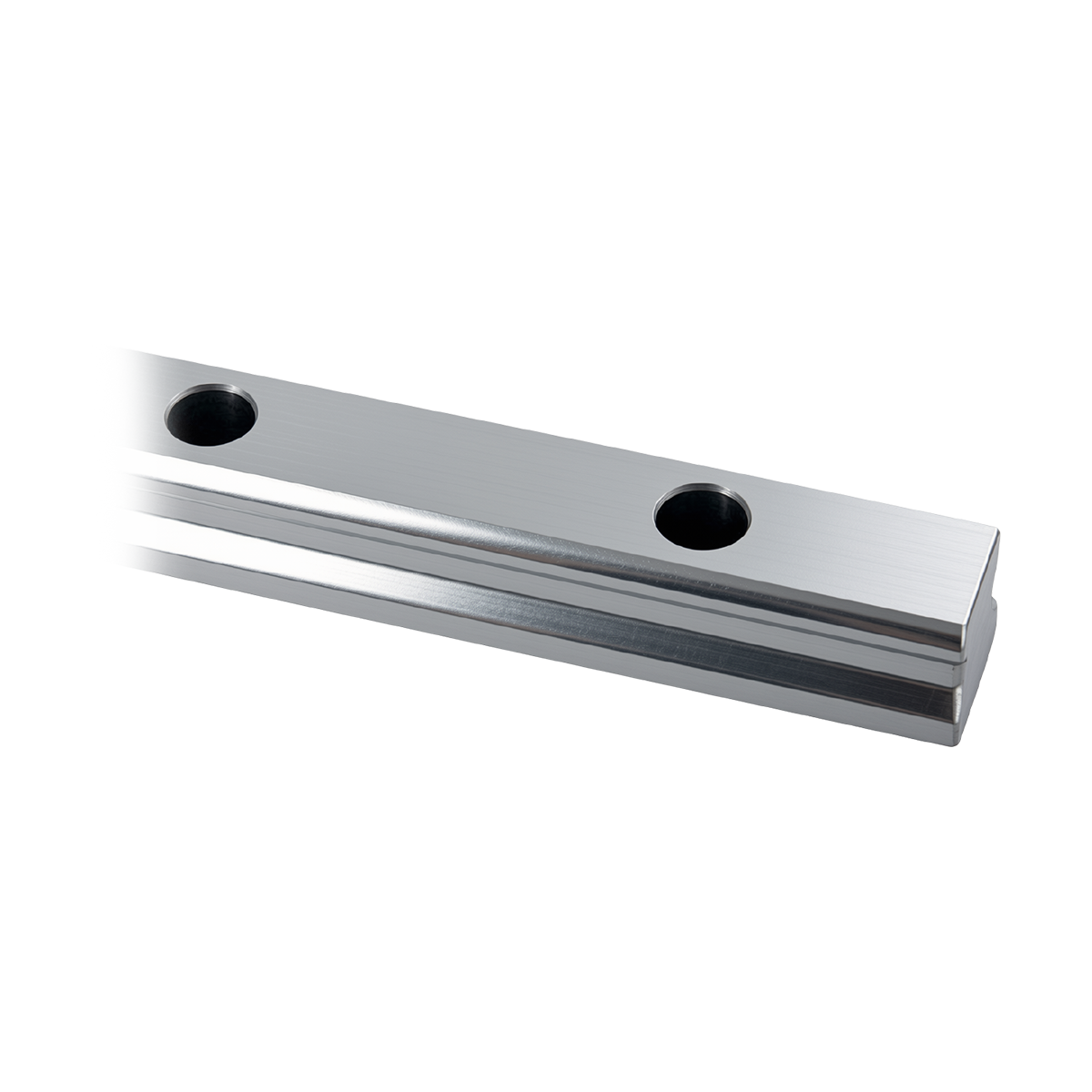

TBI-TR30 Rails are matched for TBI-TRx30 Blocks, and are offered in standard or custom lengths, with a continuous rail length up to 4000mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information.
- Rail Width: 28mm
- Use with: TBI-TRx30 Blocks
- Custom Rail Lengths Available
- Continuous Rail Lengths up to 4000mm

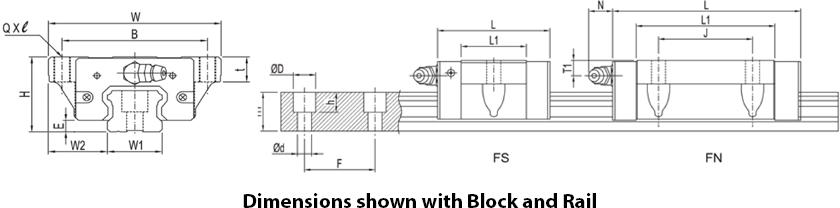

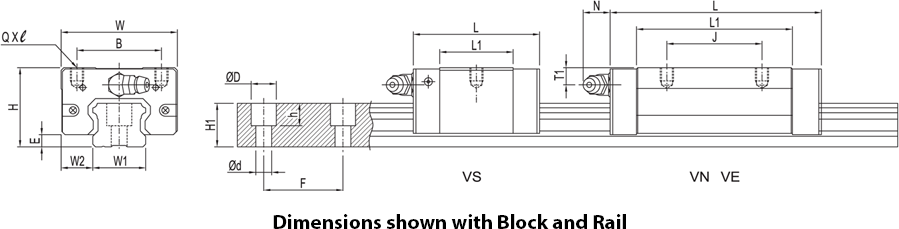

| Item | Rail Dimension (mm) | Rail Weight (lbs) | 1pc Price (USD) | Add to Cart | ||||
|---|---|---|---|---|---|---|---|---|
| W1 | H1 | F | d x D x h | Rail Length | ||||
| TBI-TR30N-4000L | 28 | 23 | 80 | 9 x 14 x 12 | 4000 | 40.04 | $331.00 | Call Us Contact Us |
| TBI-TR30N-3900-30-30 | 28 | 23 | 80 | 9 x 14 x 12 | 3900 | 39.04 | $362.00 | Call Us Contact Us |
| TBI-TR30N-3700-10-10 | 28 | 23 | 80 | 9 x 14 x 12 | 3700 | 37.04 | $349.00 | Call Us Contact Us |
| TBI-TR30N-3500-30-30 | 28 | 23 | 80 | 9 x 14 x 12 | 3500 | 35.04 | $329.00 | Call Us Contact Us |
| TBI-TR30N-3300-10-10 | 28 | 23 | 80 | 9 x 14 x 12 | 3300 | 33.03 | $316.00 | Call Us Contact Us |
| TBI-TR30N-3100-30-30 | 28 | 23 | 80 | 9 x 14 x 12 | 3100 | 31.03 | $296.00 | Call Us Contact Us |
| TBI-TR30N-2900-10-10 | 28 | 23 | 80 | 9 x 14 x 12 | 2900 | 29.03 | $283.00 | Call Us Contact Us |
| TBI-TR30N-2700-30-30 | 28 | 23 | 80 | 9 x 14 x 12 | 2700 | 27.03 | $263.00 | Call Us Contact Us |
| TBI-TR30N-2500-10-10 | 28 | 23 | 80 | 9 x 14 x 12 | 2500 | 25.03 | $250.00 | Call Us Contact Us |
| TBI-TR30N-2300-30-30 | 28 | 23 | 80 | 9 x 14 x 12 | 2300 | 23.03 | $230.00 | Call Us Contact Us |
| TBI-TR30N-2100-10-10 | 28 | 23 | 80 | 9 x 14 x 12 | 2100 | 21.02 | $217.00 | Call Us Contact Us |
| TBI-TR30N-1900-30-30 | 28 | 23 | 80 | 9 x 14 x 12 | 1900 | 19.02 | $197.00 | Call Us Contact Us |
| TBI-TR30N-1700-10-10 | 28 | 23 | 80 | 9 x 14 x 12 | 1700 | 17.02 | $184.00 | Call Us Contact Us |
| TBI-TR30N-1500-30-30 | 28 | 23 | 80 | 9 x 14 x 12 | 1500 | 15.02 | $164.00 | Call Us Contact Us |
| TBI-TR30N-1300-10-10 | 28 | 23 | 80 | 9 x 14 x 12 | 1300 | 13.02 | $151.00 | Call Us Contact Us |
| TBI-TR30N-1100-30-30 | 28 | 23 | 80 | 9 x 14 x 12 | 1100 | 11.01 | $131.00 | Call Us Contact Us |
| TBI-TR30N-0900-10-10 | 28 | 23 | 80 | 9 x 14 x 12 | 900 | 9.01 | $118.00 | Call Us Contact Us |
| TBI-TR30N-0700-30-30 | 28 | 23 | 80 | 9 x 14 x 12 | 700 | 7.01 | $98.00 | Call Us Contact Us |
| TBI-TR30N-0500-10-10 | 28 | 23 | 80 | 9 x 14 x 12 | 500 | 5.01 | $85.00 | Call Us Contact Us |
| TBI-TR30N-0300-30-30 | 28 | 23 | 80 | 9 x 14 x 12 | 300 | 3.01 | $65.00 | Call Us Contact Us |
| TBI-TR30N-0200-20-20 | 28 | 23 | 80 | 9 x 14 x 12 | 200 | 2.01 | $58.00 | Call Us Contact Us |
*Rail lengths larger than 2400mm require additional shipping charges and are not available for purchase online. Please contact our sales department to place an order.
