TBI-TR30N-0700-30-30
| W1 | 28 |
|---|---|
| H1 | 23 |
| F | 80 |
| d x D x h | 9 x 14 x 12 |
| Rail Length | 700 |
| Rail Weight (lbs) | 7.01 |
| Lead Time | Typ 1-3 Days |
Interested in large quantity discount?
Product Information

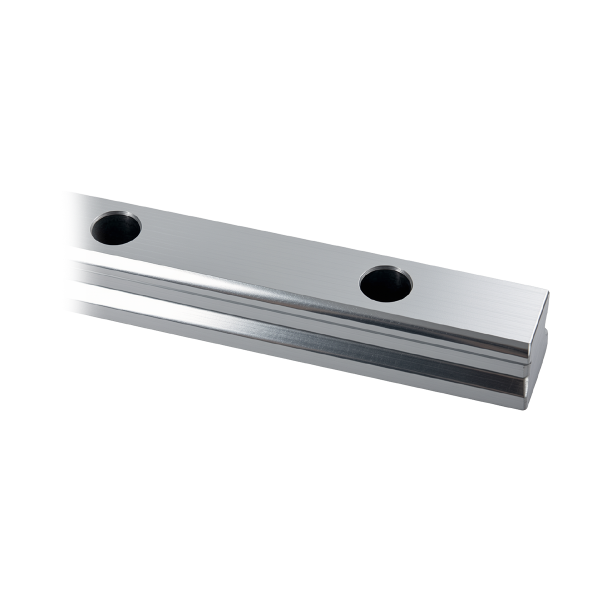

TBI-TR30 Rails are matched for TBI-TRx30 Blocks, and are offered in standard or custom lengths, with a continuous rail length up to 700mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information. Bearing Blocks sold separately.
- Size: 28mm Linear Guide Rail
- Continuous Rail Lengths Up to 700mm
- Custom Rail Sizes Available
- Matched Bearing Blocks
Have questions? Contact us!
Inquiries are answered in the order they are received; typically within 48 hours (M-F). Response time is dependent upon the volume of inquiries and our business schedule.
