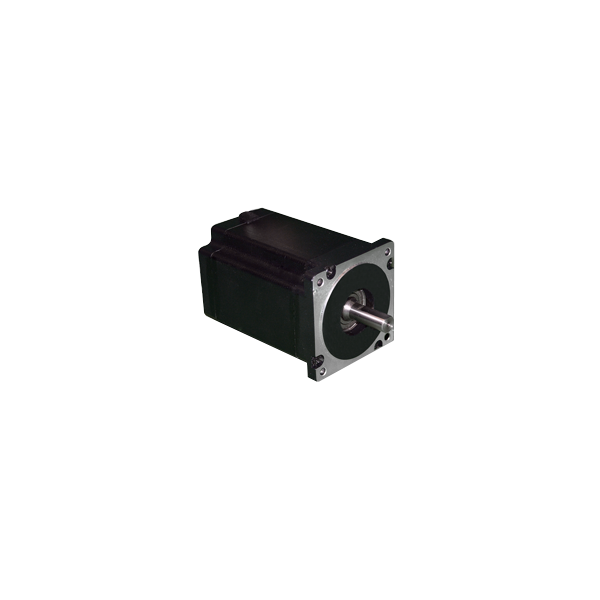

34V309S-LW8

The 34V Series High Torque Stepper Motors offer a great value without sacrificing quality. These motors are designed to offer the highest possible torque while minimizing vibration and audible noise. A broad line of motor windings and stack lengths are available off-the-shelf, and motors can be customized to fit your machine requirements. The standard 8-lead motors can be connected in all possible configurations: series, unipolar, or parallel, to allow the maximum flexibility for your application. We can also customize the winding to perfectly match your voltage, current, and maximum torque at operating speeds. The 34V Series is the closest match to the Superior Electric Slosyn KML and the Oriental Motors NEMA 34 Series.

See Accessories on this website for optional motor adders such as encoders, brakes, cables and connectors. For Gearbox options, see Gearboxes. For compatible drivers, consider MBC05641, MBC12101, MBC10641, MLA10641 and Driver Packs.

• NEMA 34 Frame Size
• 1.8° Natural Step Angle
• Substantial Increase In Torque Over Standard Torque Motors - Up to 1,300 oz-in
• High Acceleration and Increased Rotor Inertia
• 3 Stack Lengths
• Rugged Construction
• Higher Temperature Characteristics
• CE Certified and RoHS Compliant
